Description

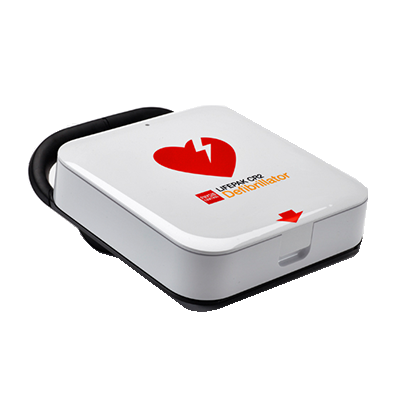

LIFEPAK Defibrillator CR2 Wi-Fi 30.2 + 3G Fully Automatic AED
The LIFEPAK CR2 Wi-fi 30.2 + 3G defibrillator is supplied with pre-connected four year electrodes, operating instructions, battery, handle, USB cable and a LIFELINKcentral™ AED Program Manager Basic account. The LIFEPAK CR2 Wi-fi 30.2 + 3G Fully-Automatic device is designed to deliver a shock to the patient automatically, when appropriate. This device does not feature manual override.
The CR2 is the only AED that allows chest compressions during ECG rhythm analysis thereby reducing pauses between CPR and defibrillation. If a shockable rhythm is detected, the CR2 delivers shocks with powerful escalating energy, with no judgment call required on the part of the user.
The LIFEPAK CR2 Wi-fi 30.2 + 3G guides the operator through the procedures with a combination of voice and visual prompts and flashing LEDs. The device provides visual prompts for placement of the QUIK-STEPâ„¢ side-by-side electrodes. The electrodes are colour-coded, which also help with relative pad placement as shown on the pictures. The LIFEPAK CR2 electrodes can be placed on either side of the chest.
The device features a Child Mode Button and when the operator pushes the Child Mode button, the device will provide the energy delivery and CPR guidance set for a pediatric patient. A pediatric attenuator is not required. The same electrodes are used for both adult and pediatric patients.
In the Box
1 x Lifepak CR2 Wi-Fi 30.2 + 3G fully-automatic defibrillator
1 x Battery
1 x QUIK-START Electrodes
1 x Handle
1 x USB Cable
1 x Operating instructions
1 x Getting started suide
1 x Wireless set up guide
1 x LIFELINKcentralâ„¢ AED Program Manager Basic account
Exclusive Extras from
    FREE Replacement Pads if this device is used in a rescue within two years
    FREE Email expiry reminders for your Electrode Pads & Battery
    FREE Delivery to Mainland UKÂ
Features:
Connectivity                                Wi-Fi
Fully Automatic                             No
Dual Language                             Yes, Bilingual Button
Child Mode                                Child Mode Button
CPRÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â - Early Metronome
                                          - cprINSIGHT™
                                          - cprCOACHâ„¢ technology (feedback when no CPR) Â
                                          - Advanced Prompting
Breathing Prompts                           Yes Configurable by user
Automatic Tracking of AED location             No
Email notification of device in use               Over Wi-Fi network
Transmission of event data to                  Over Wi-Fi Newtork
arriving emergency responders
IP rating                                   55
Escalating Energy                           Four energy levels, user-configurable:Â
                                         - Adults: 150J to 360J  Â
                                         - Children: 35J to 90J
ClearVoice™ processing technology             Yes
Adaptive prompt volume                      Yes
ADAPTIV™ Biphasic waveform                 Yes
Shocks                                    166 200 joule shocks (with one minute of CPR between shocks) or 103 360 joules shocks
                                           (with one minute of CPR between shocks) or 800 minutes of operating time
 Data Storage                               Minimum 60 minutes of ECG stored for two patient episodes
Electrodes                                 Preconnected QUIK-STEP electrodes for adult and paediatric patients, compatible with LIFEPAK EMS devices
Electrode Life                               4 Years
Battery Life                                 4 Years
Dimensions                                Depth: 9.7 cm (3.8 in) Width: 22.6 cm (8.9 in) Height: 27.4 cm (10.8 in)
Weight (with battery & electrodes)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 2.0 kg (4.5 lb)
Self-tests                                  Daily, weekly, monthly
Check-in                                   Monthly
Event Data Export                           Wireless to AED Event Viewer
Readiness Indicator                          LED, audible alert
Out of Temperature Range Notification           No
Time to Shock After CPRÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â At 360J after CPR with cprINSIGHT enabled < 7 seconds
                                         Fully automatic <13 seconds
Warranty                                  8 Years
LIFELINKcentral AED Programme              Â
Manager Subscription                        Basic account
