Description

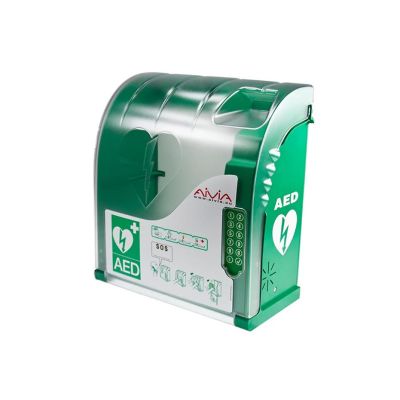

Outdoor Heated Alarmed AED Defibrillator Cabinet
Storing your AED outside needs careful consideration as extremely hot or wintry cold conditions can affect access to the cabinet, and it also needs to withstand all adverse weather conditions. We only offer you the best products on the market, and this Outdoor Heated AED Cabinet is ideal for use right across the UK.
This AED cabinet may be installed indoors or outdoors. It has the Day/Night lighting of the AED compartments by LEDs with automatic luminosity detection. Opening the cover automatically triggers a visual alarm (flashing red LEDs), the audible alarm (optional) is activated when the cover opens.
Remember, survival rates of a person in Cardiac Arrest drop by 7-10% per minute, so quick access is essential.
The heating option is connected to a temperature sensor, which activates it when a minimum temperature of 10 degrees is reached.
Key Features:
-
Suits the majority of defibrillator brands
-
For indoor or outdoor use
-
Defib is easily viewable to check battery and pad status
-
Audible alarm system emits from 70 to 105 decibels
-
Regulated heating and fanning system
-
Flashing red LED visual warnings indicate any malfunction
Technical Specifications:
-
Dimensions: External: 38.8 x 42.3 x 20.1cm Internal: 31 x 31 x 15cm
-
Weight: 3.3kg
-
Material: Door - Polycarbonate, Chassis, Square - ABS
-
Power supply: 24 VDC, 75 Watts, power-limited source
-
Operating temperature: minimum -20C, maximum 55C
-
Temperature alarms: Defined by user, default settings are - low temperature alarm 5C, high temperature alarm 40C
-
Heating options: defined by user, default settings - heating threshold 10C, fan threshold 30C
-
Sound level: 90 - 105dB / 1 metreÂ
-
Compliance: EN 55022:2006, EN 55024: 1998/ A1 : 2001/ A2 : 2003, EN 60950-1 : 2006
Additional Features:
-
Regulated heating and fanning system
-
Enables AED to be stored in +0°C temperatures
-
System activated through heat sensor according to configured thresholds or as preset by user
-
Mains power supply
-
The model is powered by 24 Volts VLSV (Very Low Safety Voltage) for public safety reasons.
-
Protection ingress: IP54 - dust protected - splashing of water
-
Humidity index: 95% - without condensation
